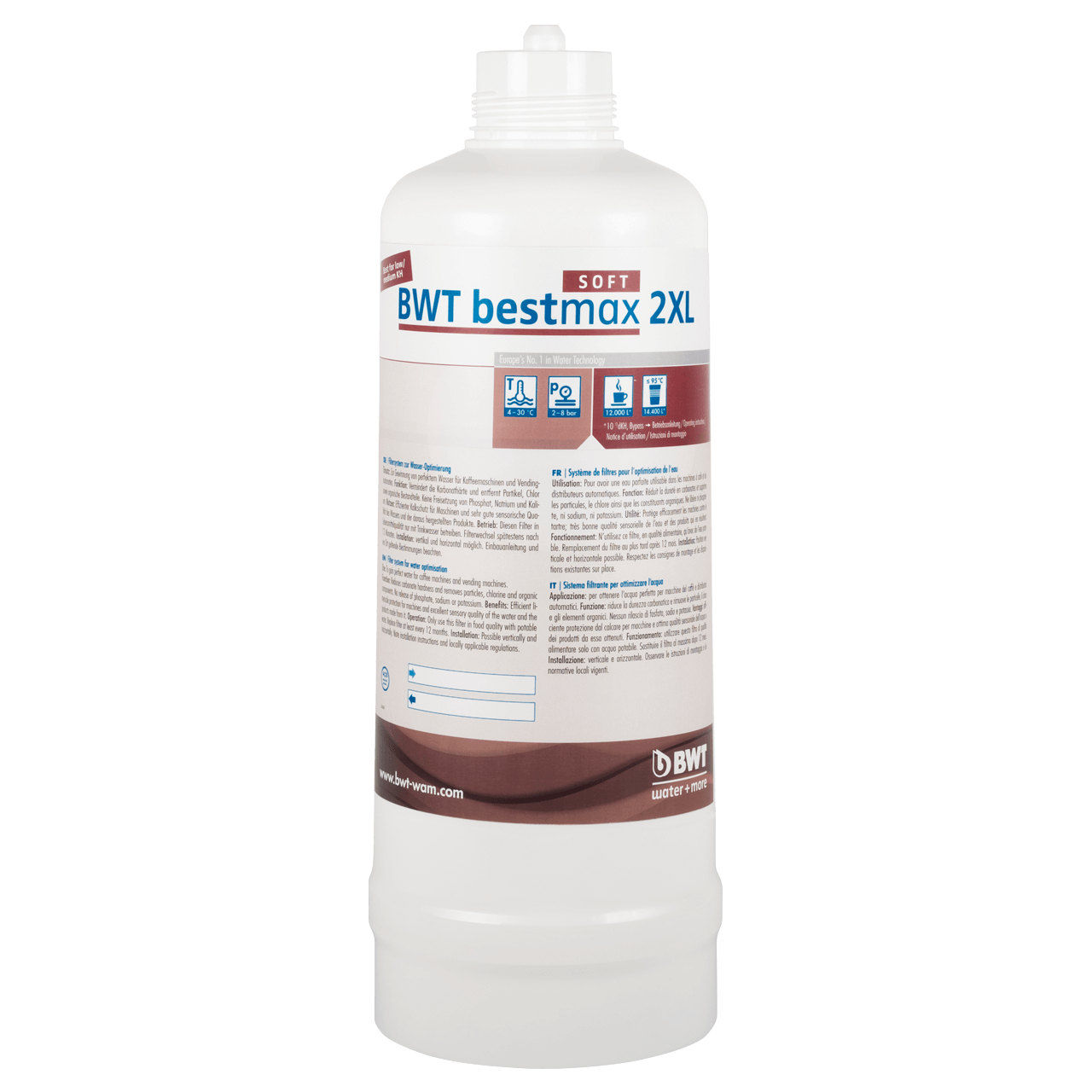

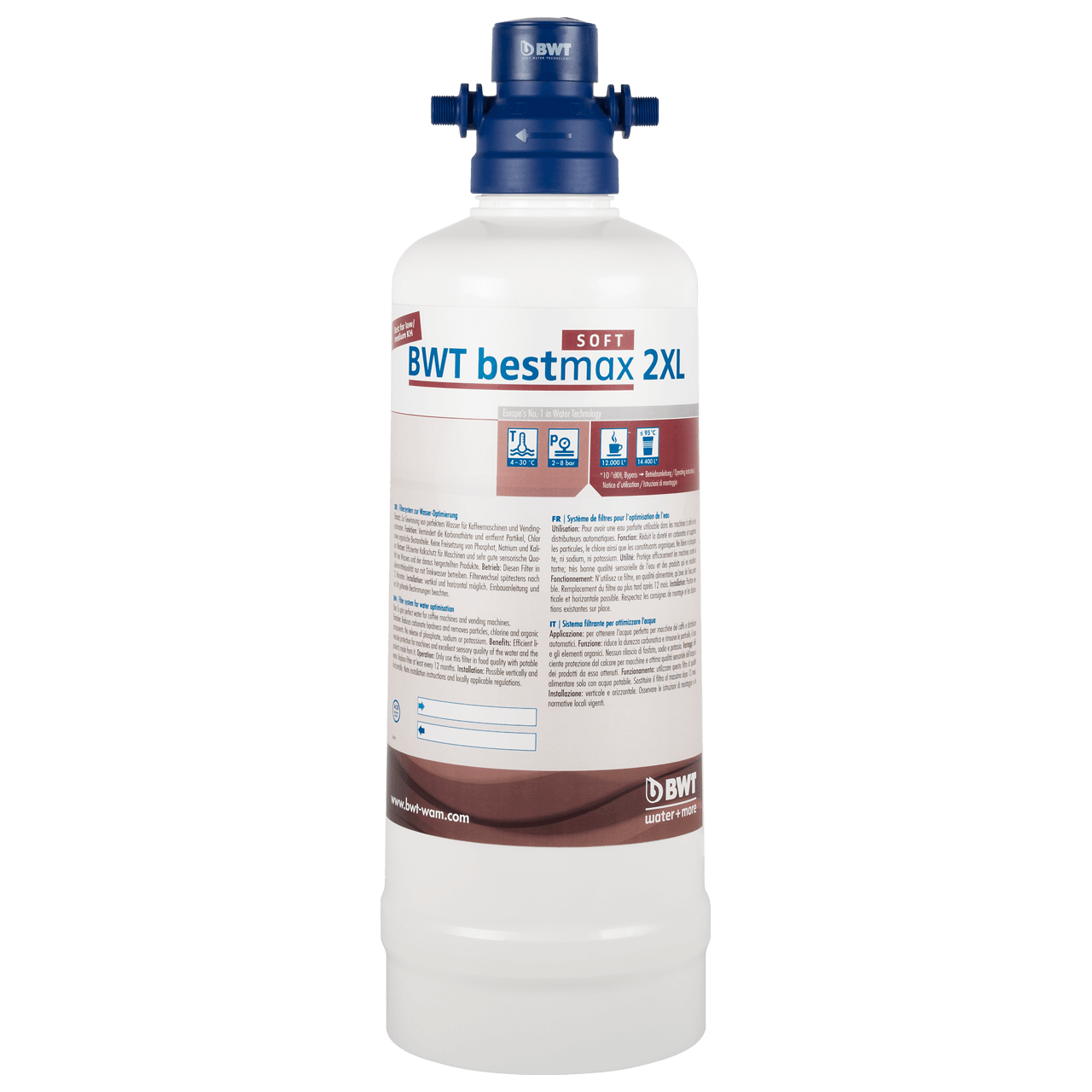

BWT bestmax SOFT
For soft water areas
- Special filter system for water optimization for coffee machines
- Protection of coffee machines against limescale deposits, particles, off-flavour components and chlorine
- Optimized for use in areas with low carbonate hardness
- Easy to install with universal BWT besthead FLEX connection technology
- Economic use for any water requirements thanks to numerous filter sizes
- Space-saving design that is very easy to handle
Product details
BWT bestmax SOFT is a filter system that is ideal for optimising water for coffee machines and has been developed for use in areas with a low local carbonate hardness (limescale content). The filter system meets the highest requirements in terms of high filter capacities and efficiency.
The filtrate is low in calcifiers yet optimally mineralised. BWT bestmax SOFT delivers water with top sensory characteristics with which high-quality hot beverages such as coffee, coffee specialities and tea can be brewed.
Technical benefits of BWT bestmax SOFT at a glance:
- 5-stage filtration
- Highly efficient limescale protection
- Activated charcoal fleece for consistently crystal-clear water
- Filtration, also of bypass water
- Ease of handling when replacing the filter
- Horizontal or vertical installation

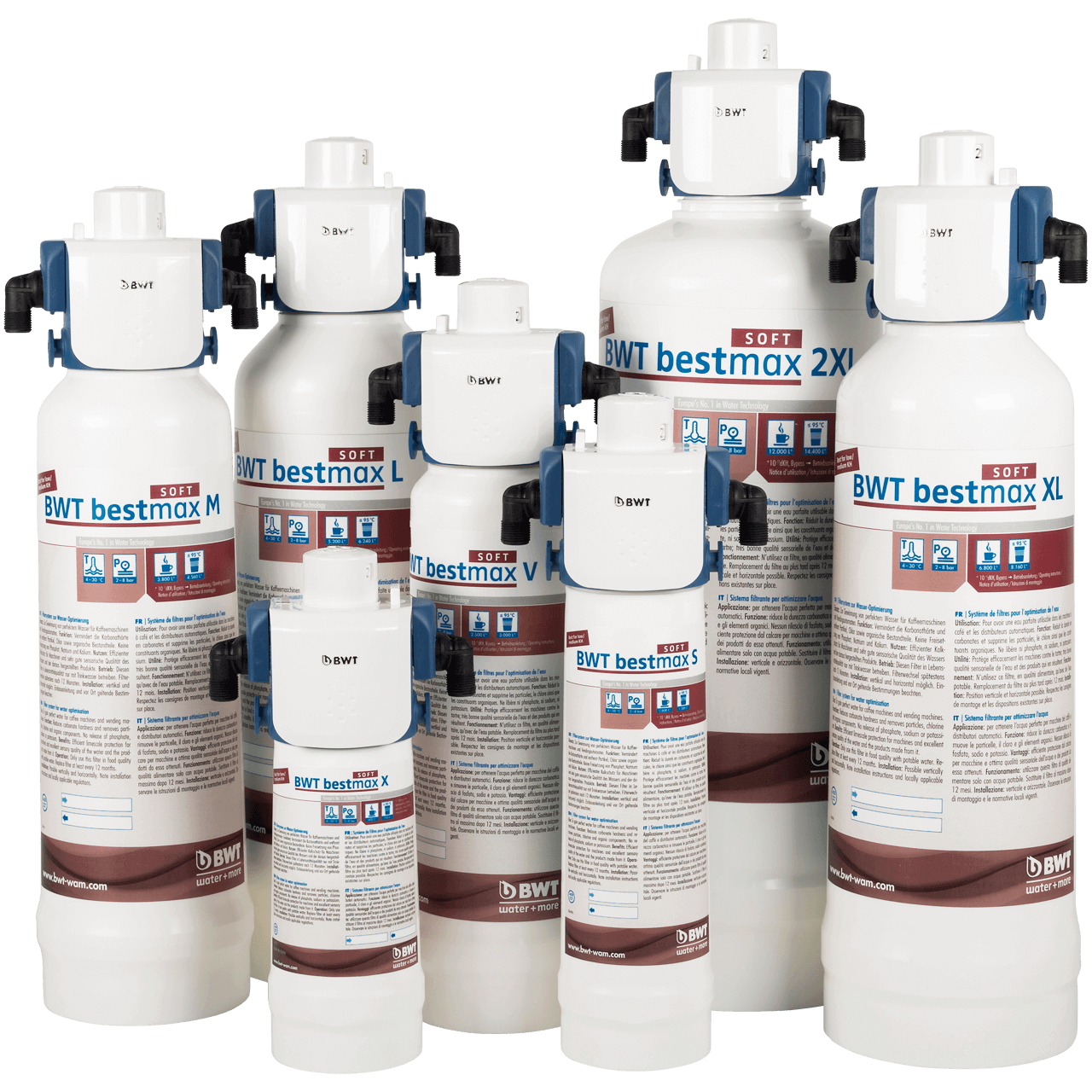

Technical details
|
BWT bestmax SOFT type |
X |
S |
V |
M |
L |
XL |
2XL |
|---|---|---|---|---|---|---|---|
|
Connection thread (in/out), (1) |
variable |
variable |
variable |
variable |
variable |
variable |
variable |
|
Inlet pressure, |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
|
Water temperature, |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
|
Ambient temperature, |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
|
Total height without bracket (A) in mm, approx. |
280 |
360 |
420 |
475 |
500 |
500 |
574 |
|
Total height with bracket (B) in mm, approx. |
300 |
385 |
445 |
500 |
530 |
530 |
600 |
|
Connection height (C) in mm |
230 |
310 |
370 |
425 |
450 |
450 |
520 |
|
Distance to floor (D) in mm |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
|
Installation length (E) in mm |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
|
Ø filter cartridge (F) in mm |
88 |
88 |
115 |
130 |
145 |
145 |
185 |
|
Weight in kg, |
0.5/1.1 |
0.9/1.5 |
2.1/3.2 |
2.4/4.2 |
3.4/5.9 |
3.8/6.0 |
7.5/11.0 |
|
Order no. of filter cartridge |
FS20I10A00 |
FS22I10A00 |
FS23I10A00 |
FS24I10A00 |
FS26I10A00 |
FS28I10A00 |
FS30I10A00 |
(1) Connection thread options with BWT besthead FLEX
