BWT bestmax PREMIUM
The Taste Experts
- Unique filter system for PREMIUM water for coffee and vending machines
- For reliable limescale protection and water with top sensory characteristics
- Unique with patented BWT Magnesium Technology
- Mineralisation for higher magnesium content ensures optimum extraction results for coffee
- Simple installation via universal BWT besthead FLEX connection technology
- Space-saving design that is very easy to handle
Product details
BWT bestmax PREMIUM is an innovative filter system for optimizing water especially for all hot beverages from coffee and vending machines. This filter reduces all undesirable components such as limescale, particles, off-flavours such as chlorine and organic compounds from the raw water.
As a pioneering innovation, this filter also features BWT Magnesium Technology, which enriches the water with valuable magnesium in exchange for calcium. In addition to effective limescale protection, BWT bestmax PREMIUM thereby ensures outstanding results for hot beverages.
Technical advantages of BWT bestmax PREMIUM at a glance:

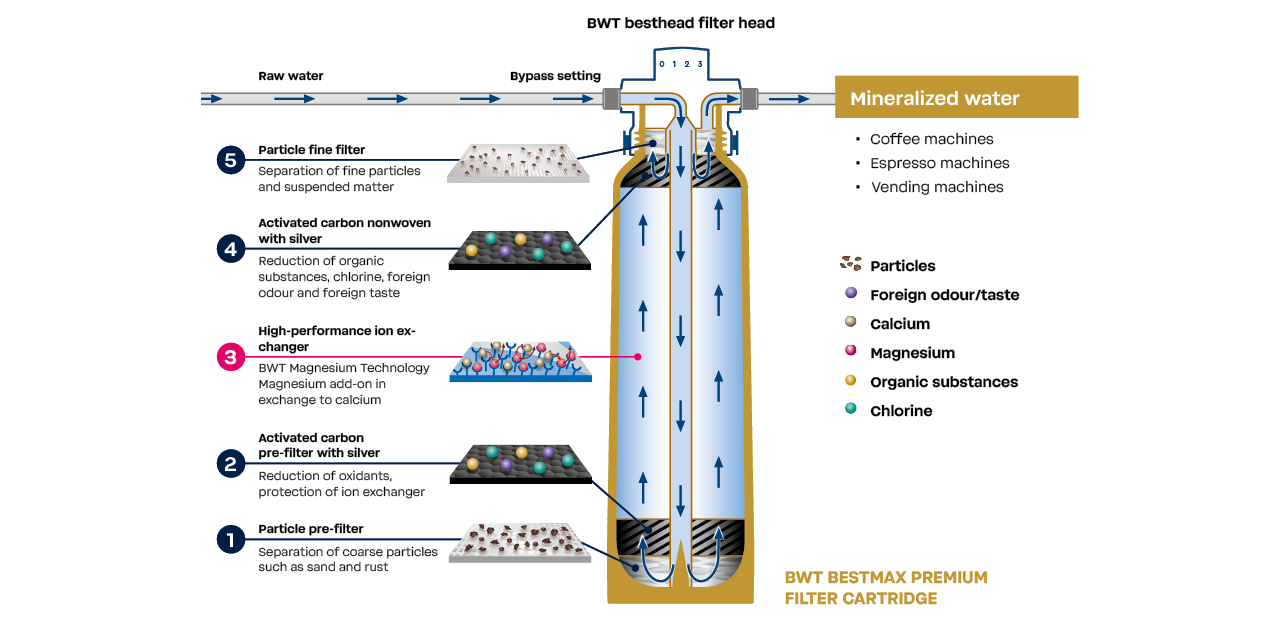

- 5-stage filtration
- Reliable protection against limescale for machines
- Ideal mineralization for higher magnesium content
- Activated charcoal fleece for consistently crystal-clear water
- Filtration, also of bypass water
- Ease of handling when replacing the filter
- Horizontal or vertical installation
Technical details

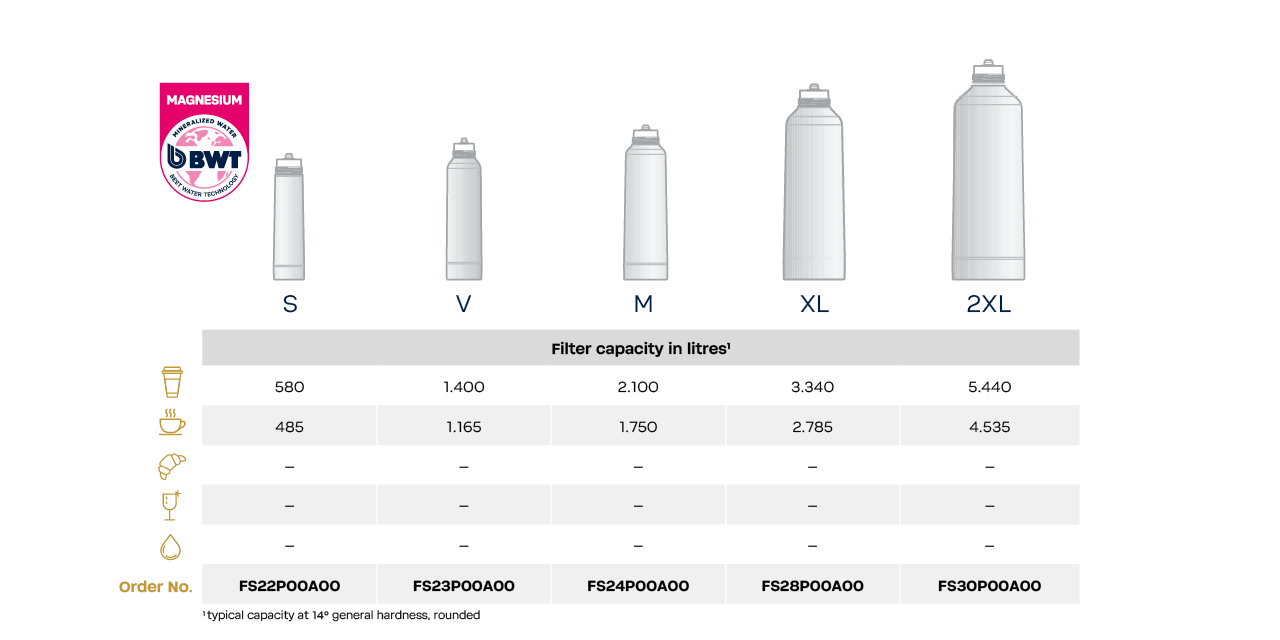

| BWT bestmax PREMIUM type | S | V | M | XL | 2XL |
| Connection thread (in/out); (1) | variable | variable | variable | variable | variable |
| Inlet pressure, min. – max. in bar | 2–8 | 2–8 | 2–8 | 2–8 | 2–8 |
| Water temperature, min. – max. in °C | 4–30 | 4–30 | 4–30 | 4–30 | 4–30 |
| Ambient temperature, min. – max. in °C | 4–40 | 4–40 | 4–40 | 4–40 | 4–40 |
| Total height without bracket in mm, approx. | 360 | 420 | 475 | 502 | 580 |
| Total height with bracket in mm, approx. | 385 | 445 | 500 | 527 | 600 |
| Connection height in mm | 306 | 366 | 421 | 448 | 520 |
| Distance to floor in mm | 65 | 65 | 65 | 65 | 65 |
| Installation length in mm | 125 | 125 | 125 | 125 | 125 |
| Ø filter cartridge in mm | 88 | 110 | 130 | 147 | 185 |
| Weight in kg, approx. (dry/wet) | 0.9/1.5 | 2.3/3.2 | 2.8/4.2 | 4.0/6.0 | 7.8/11.0 |
| Order no. of filter cartridge | FS22P00A00 | FS23P00A00 | FS24P00A00 | FS28P00A00 | FS30P00A00 |
(1) Connection thread options with BWT besthead FLEX
