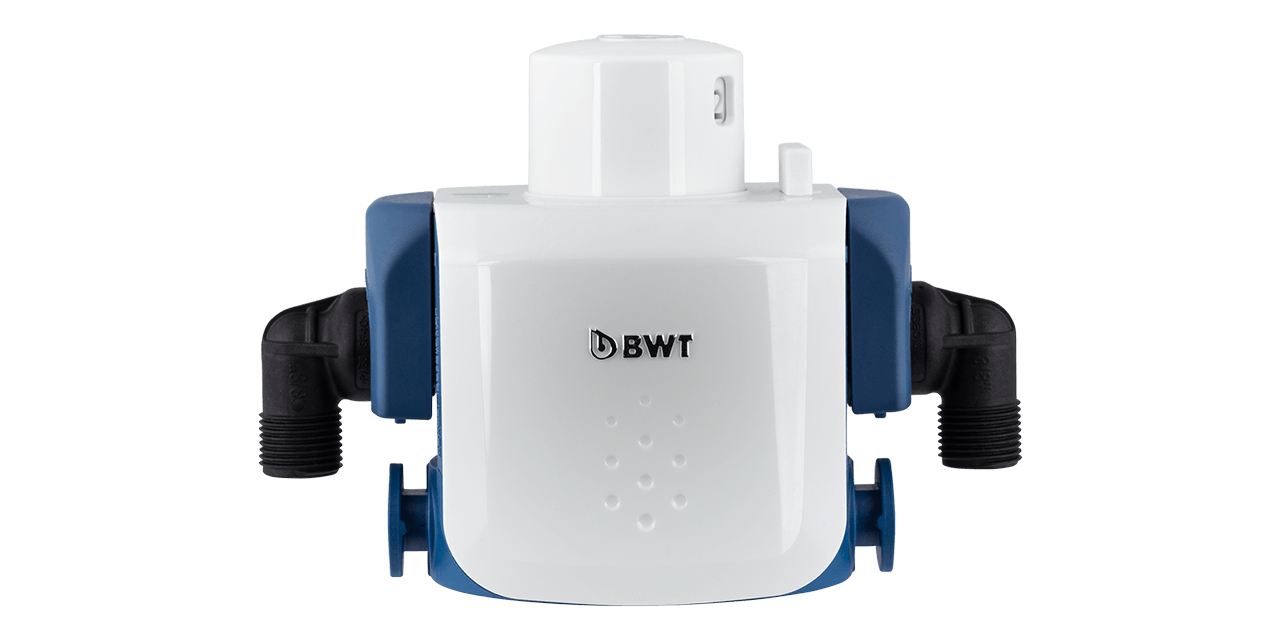

BWT besthead FLEX
FLEX filter head
- Safely stopped bypass setting with easy-view display
- Refined new connection technology for great flexibility when installing filters
- With EASY Vent flushing valve for easy and reliable purging
- DVGW-tested check valve on the inlet and outlet
- Safe filter changes with no water leakage
Product details
Filter installation is extremely simple even in confined spaces with BWT besthead FLEX, the filter head with the most flexible connection technology worldwide. The innovative FLEX technology with angle adjustment in 30° stages enables the best possible organisation of connection hoses even in confined spaces. This saves space whilst ensuring maximum safety.
Additional double nipples or transition fittings are no longer required due to FLEX Insert components being directly connected to the filter head. A wide range of connections and preassembled hoses to both raw water and the appliance are available for installation. All of them come with FLEX Insert connections and are directly connected to the unique interface on the filter head, where a clip holds them securely in place without any need for a tool to release it. DVGW-inspected check valves in the filter head on both the inlet and the outlet prevent water from flowing back into the filter cartridge or the water pipeline. BWT besthead FLEX and all accessory parts with FLEX Insert connections are made from food-safe materials and can be used with all potable water systems worldwide.
Technical advantages of BWT besthead FLEX at a glance:
- Integrated vent valve and hose
- Simple bypass setting with locking mechanism
- Automatic water stop for filter replacement
- Two integrated DVGW-inspected check valves as standard
- Optional standard wall mount supplied

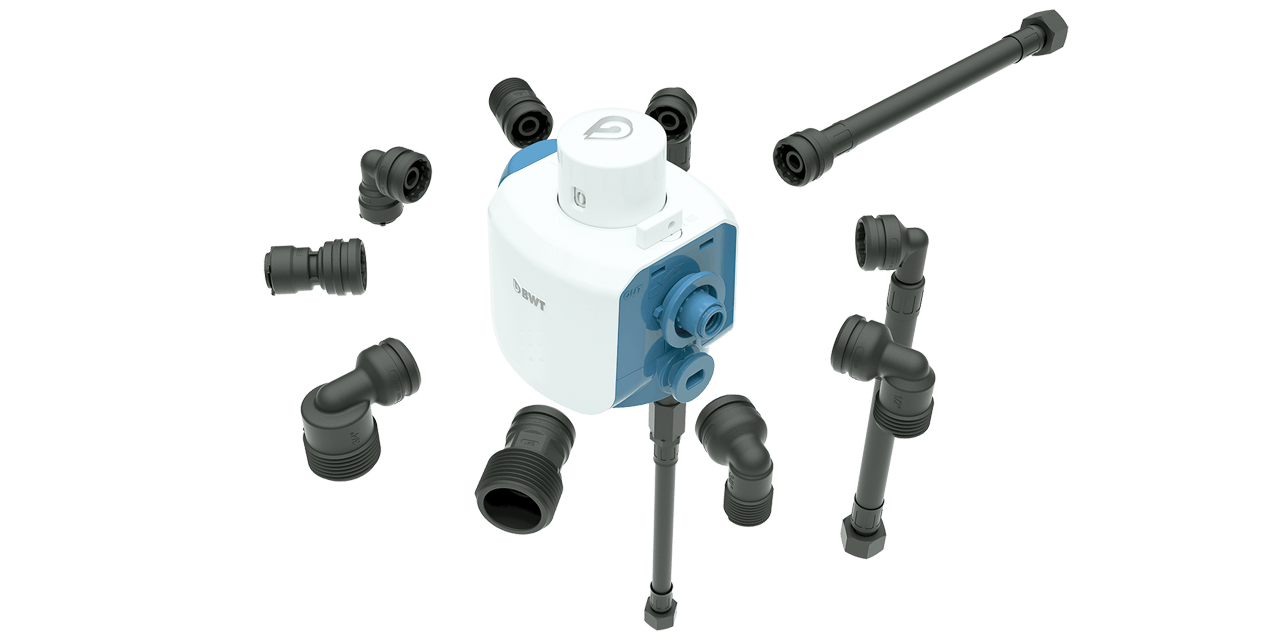

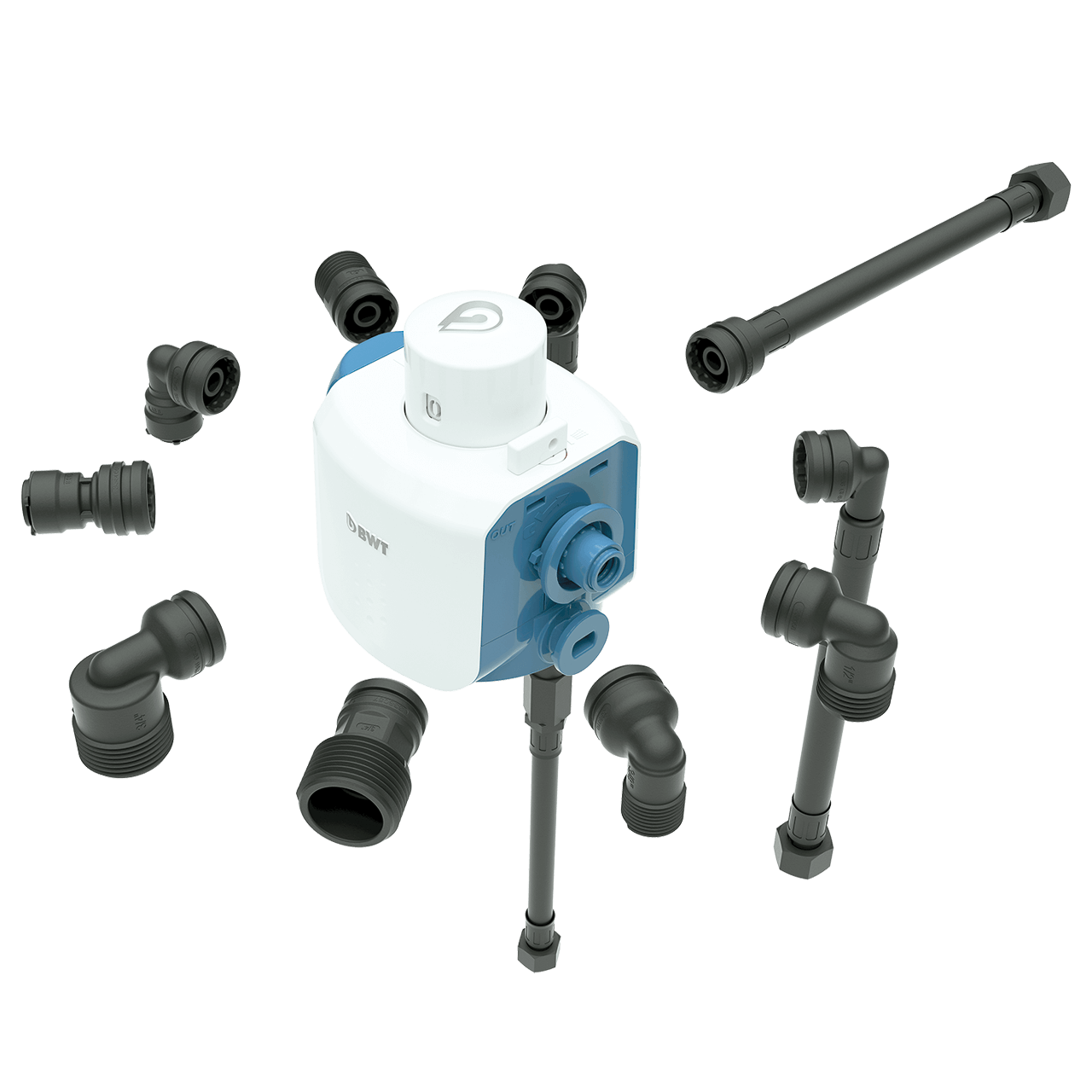

- Comprehensive FLEX connection technology is available in many sizes
Technical details
|
BWT besthead FLEX with 2 connection pieces, 90° elbow, FLEX insert, 3/8" AG |
|
| Inlet pressure, min.-max. in bar | 2–8 |
| Water temperature, min.-max. in °C | 4–30 |
| Ambient temperature, min.-max. in °C | 4–40 |
| Order no. Filter cartridge | FS00Z20A00 |
Accessories – BWT besthead FLEX
| Item number | Description |
| FS00Z32A00 |
BWT FLEX 1 hose set DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 3/8" |
| FS00Z33A00 |
BWT FLEX 2 hose set DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 1/2" |
| FS00Z34A00 |
BWT FLEX 3 hose set DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 3/4" |
| FS00Z35A00 |
BWT FLEX 4 hose set DN8 connection hose, 1.5 m, with ball valve, FLEX Insert 90° elbow made from GFP, cap nut FM 3/8" |
| FS00Z36A00 |
BWT FLEX 5 hose set DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 3/8" |
| FS00Z37A00 |
BWT FLEX 6 hose set DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 1/2" |
| FS00Z38A00 |
BWT FLEX 7 hose set DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 3/4" |
| 125252207 |
BWT FLEX 8 hose set DN8 connection hose, straight 1.5 m FLEX Insert x 90° elbow FM ¾" made of GFK |
| FS00Y66A00 | Mounting bracket for assembly beneath the table |
| FS00Y73A00 | Mounting bracket extension for wall mounting 2XL size filter cartridges |
| FS00Z39A00 |
BWT connection set besthead FLEX 1 1 x BWT besthead FLEX (filter head) 1 x connection hose with FLEX elbow and shut-off valve, 1500 mm, DN 8, 3/8" x 3/8" 1 x connection FLEX x AG 3/8" straight 1 x connection FLEX x AG 3/8" elbow 1 x reducer FM ¾" x AG 3/8" (plastic) |
| 125297165 |
BWT besthead FLEX 2 connection set – HF 1x BWT besthead FLEX (filter head) with 2 straight connectors, AG 3/4" 1x connection hose FM 3/8" x FM 3/4", DN 10, 1500 mm 1x connection piece, 90° elbow, FLEX insert x AG 3/4" made of GRP 1x reducer FM 3/4" x AG 3/8" made of GRP 1x service pass |
| FS00Z21A00 | Straight connection piece, FLEX insert, 3/8" made of GRP |
| FS00Z22A00 | Straight connection piece, FLEX insert, ½" made of GRP |
| FS00Z23A00 | Straight connection piece, FLEX insert, ¾" made of GRP |
| FS00Z24A00 | Straight connection piece, FLEX Insert, John Guest plug-in connection 8 mm made of GRP |
| FS00Z25A00 | Straight connection piece, FLEX Insert, John Guest plug-in connection 3/8" made of GRP |
| FS00Z26A00 | Connection piece, 90° elbow, FLEX insert, 3/8" AG made of GRP |
| FS00Z27A00 | Connection piece, 90° elbow, FLEX insert, 1/2" AG made of GRP |
| FS00Z28A00 | Connection piece, 90° elbow, FLEX insert, 3/4" AG made of GRP |
| FS00Z29A00 | 90° elbow connection piece, FLEX Insert x John Guest plug-in connection Ø 8mm made of GRP |
| FS00Z41A00 | FLEX connection piece x Ø 6 mm elbow John Guest |
| FS00Z42A00 | FLEX connection piece x Ø 1/4" elbow John Guest |
| FS00Z40A00 | FLEX T-connector |
