BWT bestdemin PLUS

The laboratory Experts

More information

Filter system for full desalination of drinking water for medical technology and in laboratories
Removes all dissolved salts from drinking water
Avoids salt deposits on sensitive lab equipment, such as steam generating equipment

Product details

BWT bestdemin PLUS is a filter system for producing demineralised water by simple means. This multi-stage filter features a mixed-bed ion exchanger that removes all dissolved salts from the in-flowing raw water.

The resulting demineralised water complies with DIN EN 13060 and DIN EN 285 requirements, and is perfectly suited for laboratory use to correctly prepare reagents or to clean equipment, leaving devices free of any residue. BWT bestdemin PLUS delivers demineralised water for pressurised steam autoclaves in medical and dental sterilisation applications as well as for professional steam ironing systems in laundries and dry cleaners.

Advantages of BWT bestdemin Plus at a glance:

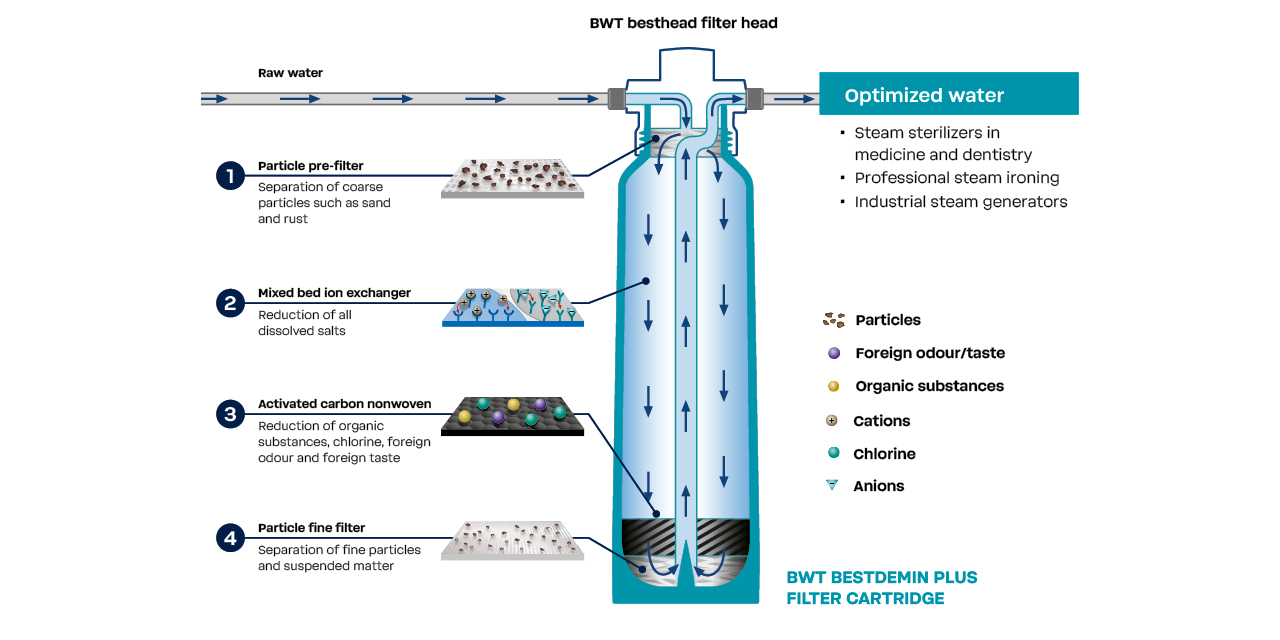

4-stage filtration
Integrated particle pre-filtration
Activated carbon fleece to protect the ion exchanger
Mixed-bed ion exchanger technology
Filtrate compliant with DIN EN 13060 and DIN EN 285
Highly efficient compact demineralisation
Ease of handling when replacing the filter

Technical details

BWT bestdemin PLUS type	V	XL
Connection thread (in/out), (1)	variable	variable
Inlet pressure, min. – max. in bar	2–8	2–8
Water temperature, min. – max. in °C	4–30	4–30
Ambient temperature, min. – max. in °C	4–40	4–40
Total height without bracket in mm, approx.	420	502
Total height with bracket in mm, approx.	445	527
Connection height in mm	366	448
Distance to floor in mm	65	65
Installation length in mm	125	125
Ø filter cartridge in mm	110	147
Weight in kg, approx. (dry/wet)	2.1/3.2	3.9/5.6
Order no. of filter cartridge	FS23D10A00	FS28D10A00
