BWT bestprotect

The Protector

More information

Filter system for water with protective factor in hospitality (HORECA) and vending
Reliable and efficient reduction of general hardness, preventing limescale and gypsum deposits in raw water containing sulphur
Special pH value stabilization, minimizing the risk of corrosion
Comprehensive protection for machine technology
Filtrate with excellent sensory quality

Product details

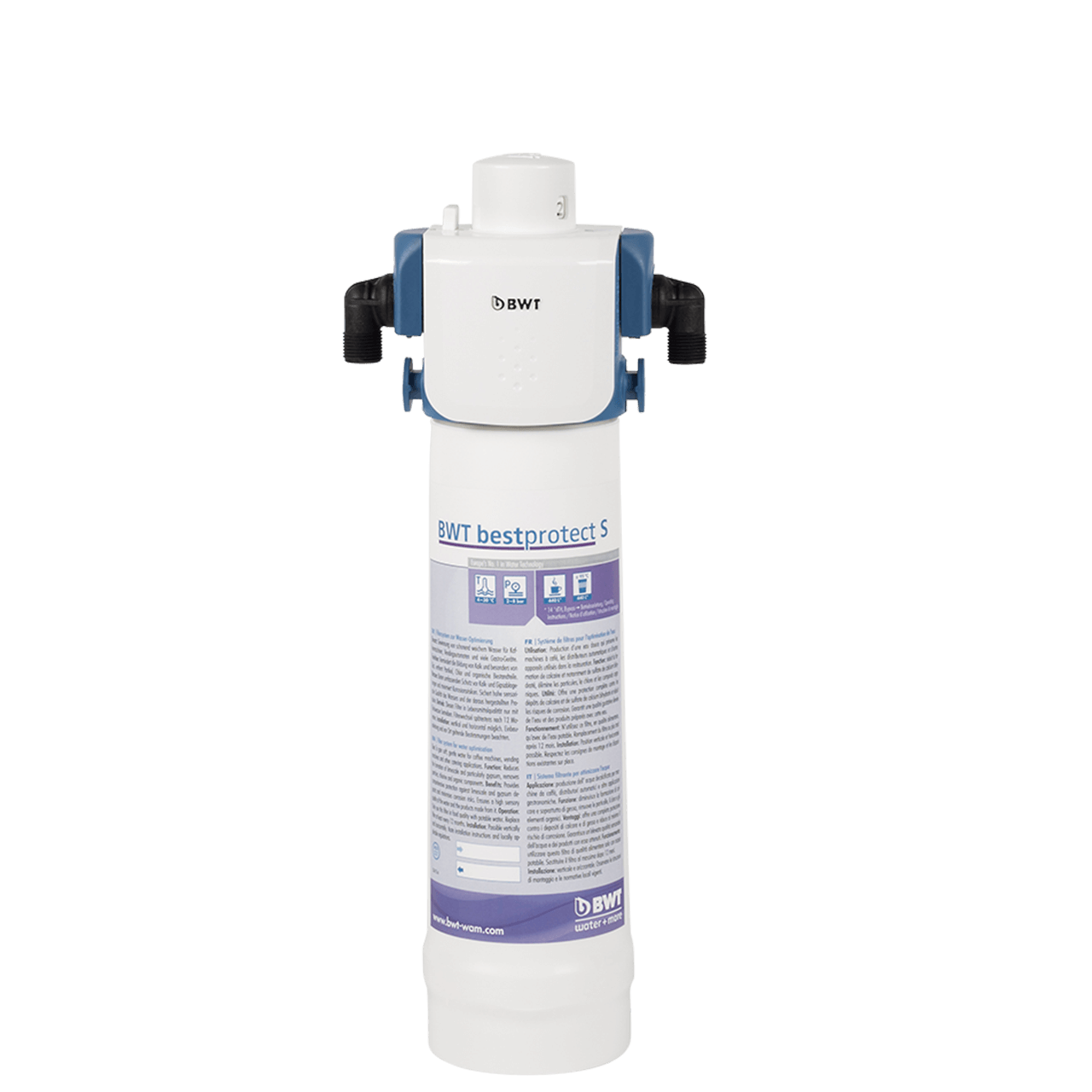

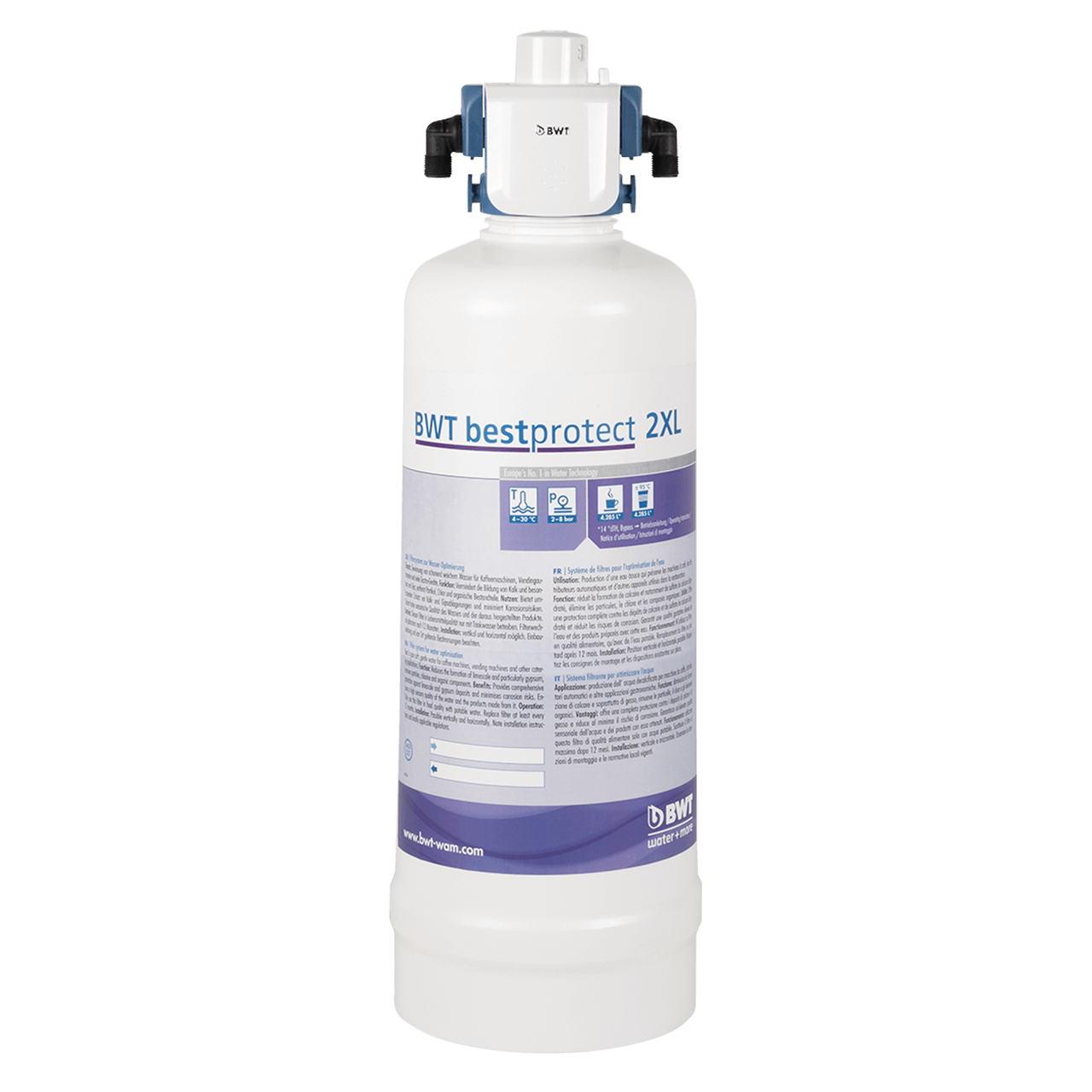

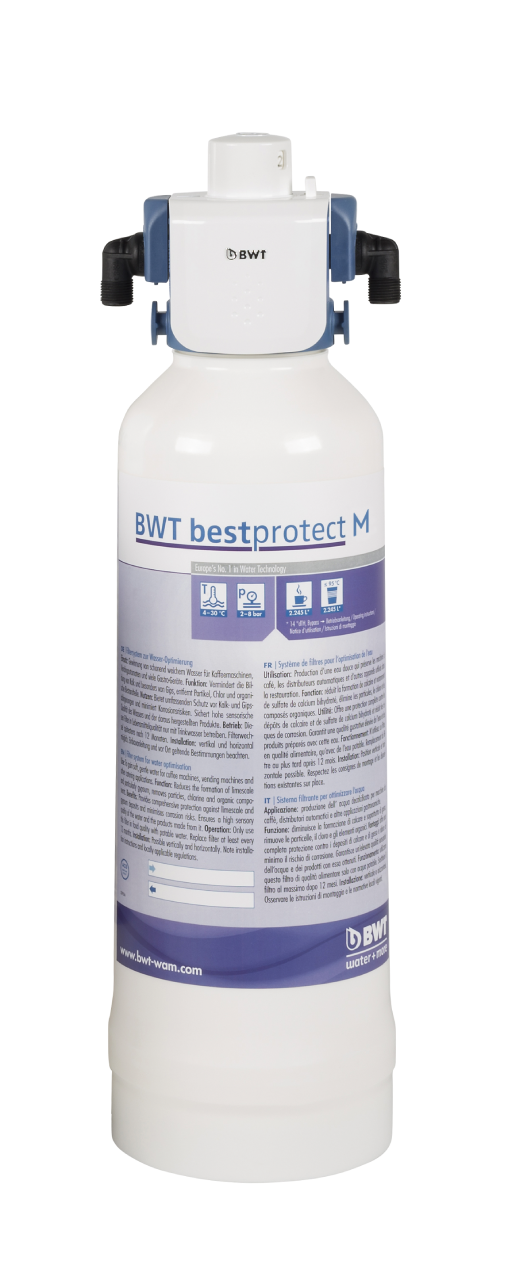

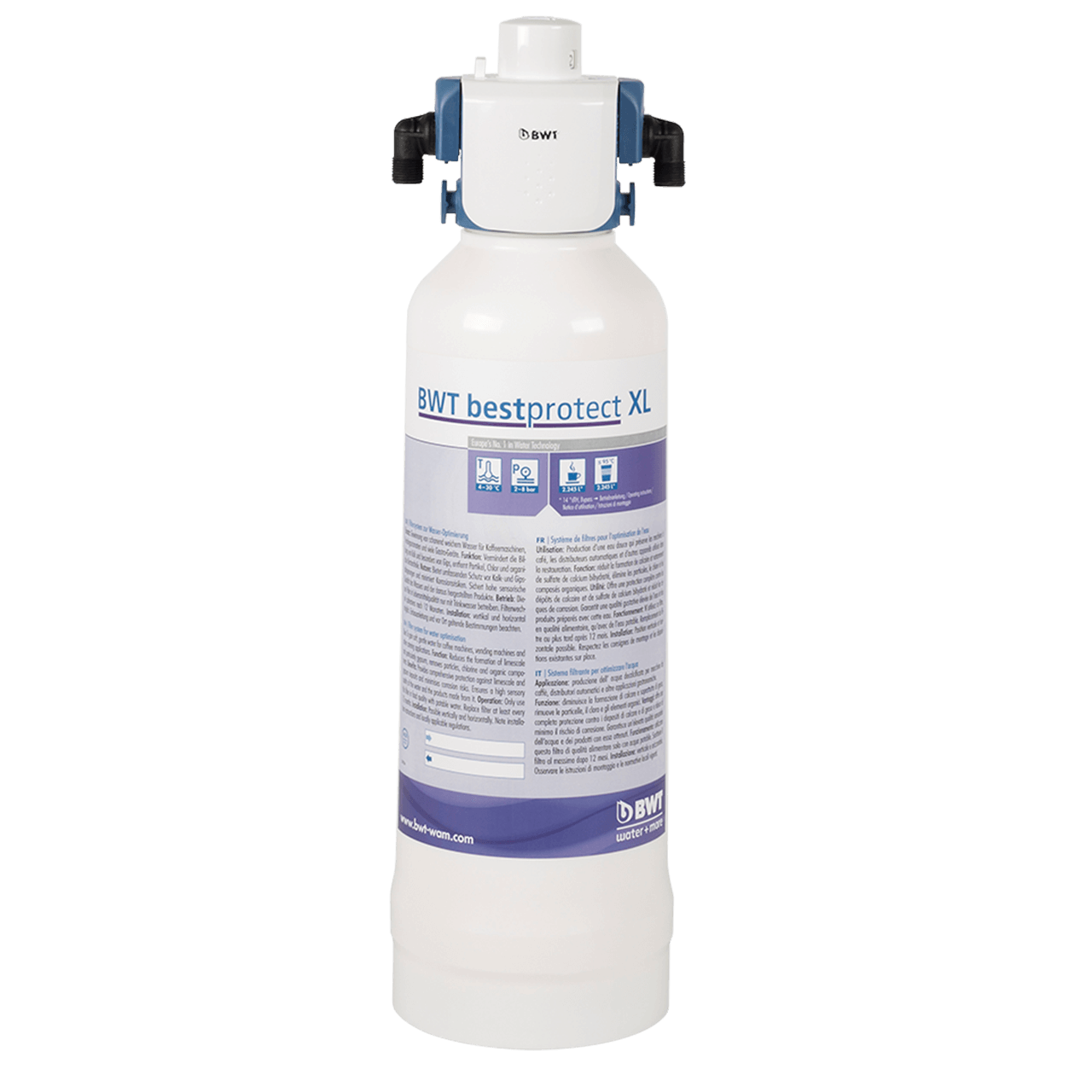

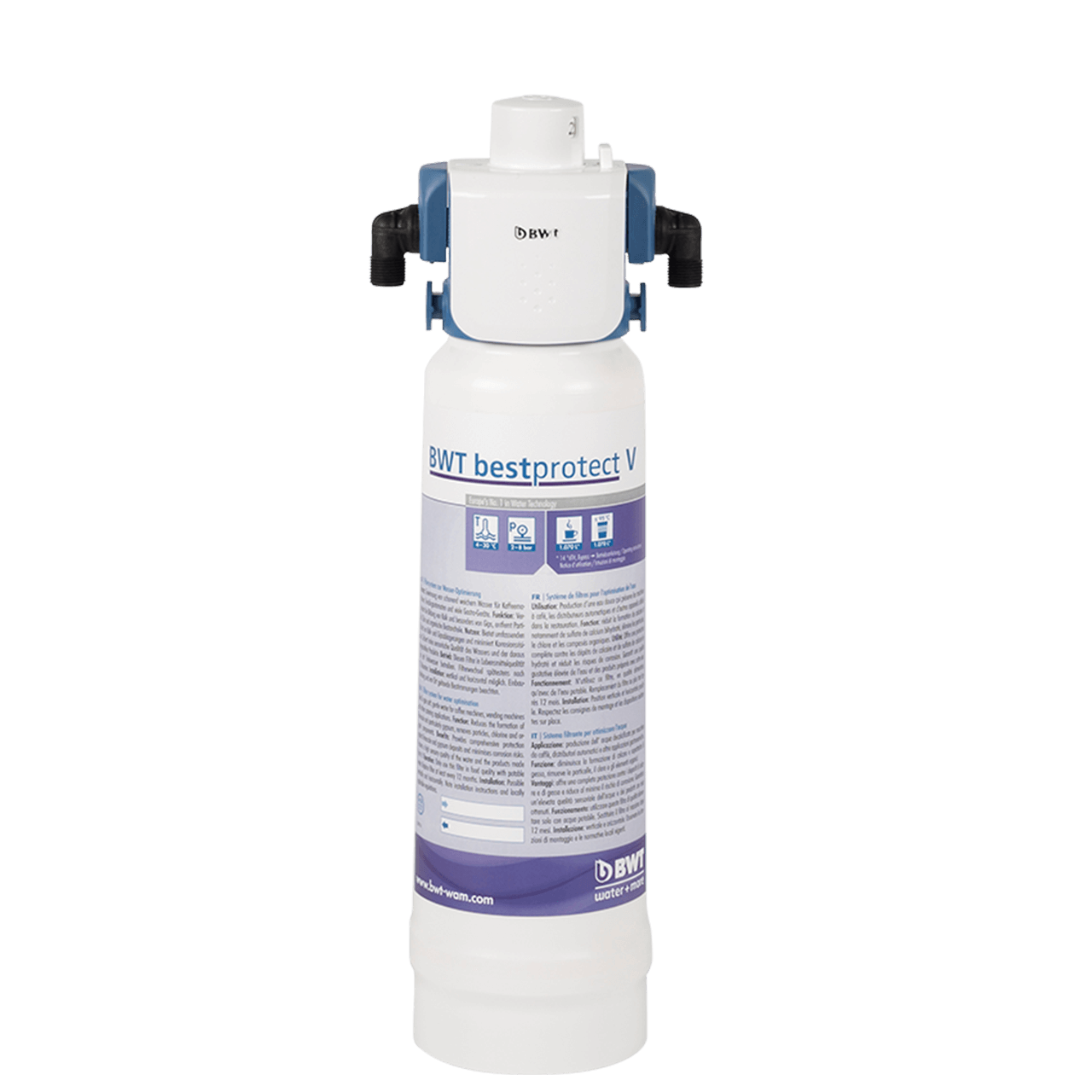

BWT bestprotect is a filter solution for water with special properties. It not only prevents the formation of limescale and gypsum, but also ensures a consistently high pH value.

BWT thereby protects the valuable machine technology from deposits and prevents corrosion problems on stainless steel parts. Moreover, this filter system delivers water with top sensory characteristics for producing high-quality hot beverages.

Technical advantages of BWT bestprotect at a glance:

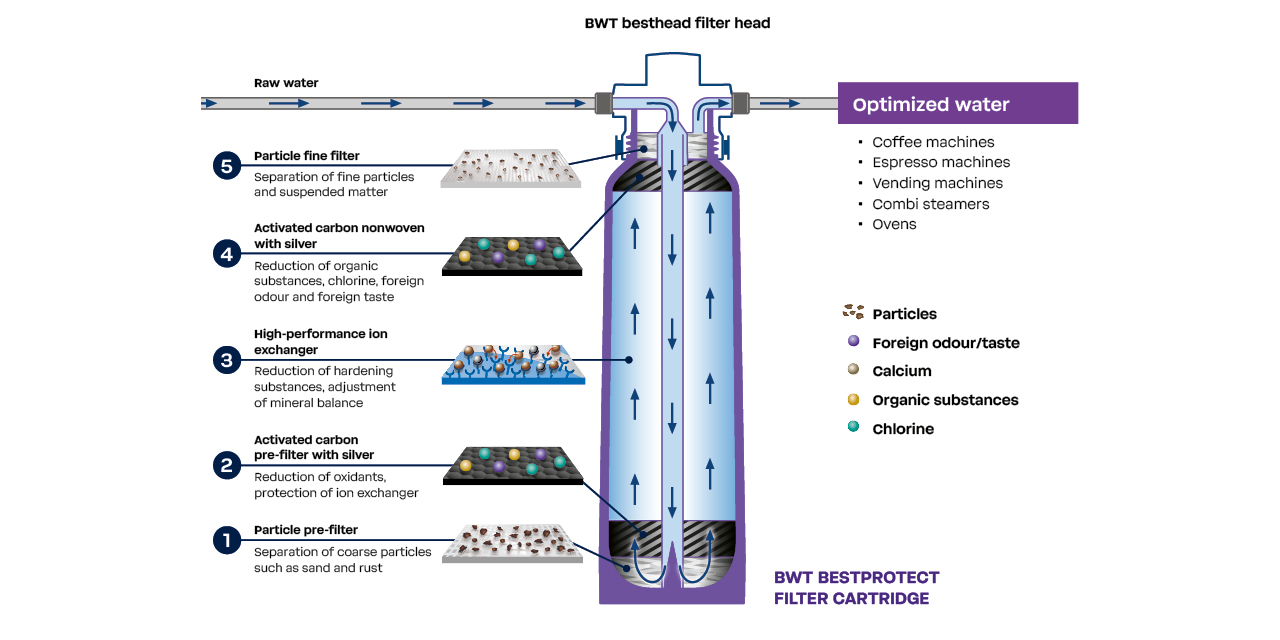

5-stage filtration
Reliable protection against limescale and gypsum for machines
High pH value to minimise the risk of corrosion
Activated charcoal fleece for consistently crystal-clear water
Ease of handling when replacing the filter

Technical details

BWT bestprotect type	S	V	XL	2XL
Connection thread (in/out), (1)	3/8"	3/8"	3/8"	3/8"
Inlet pressure, min. – max. in bar	2–8	2–8	2–8	2–8
Water temperature, min. – max. in °C	4–30	4–30	4–30	4–30
Ambient temperature, min. – max. in °C	4–40	4–40	4–40	4–40
Total height without bracket in mm, approx.	360	420	502	580
Total height with bracket in mm, approx.	385	445	527	600
Connection height in mm	306	366	448	520
Distance to floor in mm	65	65	65	65
Installation length in mm	125	125	125	125
Ø filter cartridge in mm	88	110	147	185
Weight in kg, approx. (dry/wet)	0.9/1.5	3.0/3.2	4.0/6.0	8.0/11.0
Order no. of filter cartridge	FS22N00A00	FS23N00A00	FS28N00A00	FS30N00A00
